Why are mobile rock crushers the cost-saving tools for projects in the aggregates, mining, and construction waste sectors globally? The major reason is that they completely disrupt the heavy asset operation model of traditional stationary crushing stations: no construction of a factory building, no hardening of the ground, no complicated equipment installation. Due to the integration of all components into one piece, it becomes possible to relocate freely according to construction progress and carry out crushing production on the spot. A Mobile Rock Crusher is able to conduct the whole cycle of crushing, sorting, and processing of raw stone, hard rock, and construction waste at the mining site, demolition site, or road reconstruction site, minimizing costs related to materials transportation, construction of the site, and installation of equipment. It is currently the most cost-effective and adaptive core crushing equipment in the spheres of global infrastructure projects, mining, and solid waste recycling.
The vast majority of contractors, mine owners, and aggregate plant investors in overseas projects look for the core in relation to the true working principle of mobile rock crushers, processes incorporated in their automation chain, models appropriate for different rocks and working conditions, and how to choose the right model for different countries' construction conditions.
Based 15 years of practical experience in exporting rock crusher equipment and implementing global projects, as well as international standards of the aggregate processing industry, MP Mining Equipment systematically analyzes the core technical features and advantages of mobile rock crushers.
Core Working Principle of Mobile Rock Crushers
From the point of view of industrial production, the core working principle of a mobile rock crusher is the use of the power of its integrated power system for the precise application of mechanical external force and crushing of the internal mineral bond stress of the rock, resulting in the grading crushing and shaping of big stone materials.
In contrast to the single-cycle operation of stationary crushers, mobile rock crushers conduct an integrated cycle of operations such as "mobile transportation + automatic feeding + grading crushing + precise screening + closed loop of material returning." All processes are integrated without any human intervention and are able to independently conduct the whole sand and aggregate processing cycle.
Natural rocks, ores, and concrete blocks are hard and stable due to the dense mineral structure and cohesion inside them; they cannot be crushed by conventional external forces. Mobile rock crushers taking into account the physical properties of the materials use appropriate core crushing hosts and conduct differentiated physical crushing processes to perfectly correspond to the requirements for processing the different materials globally. The whole process is pure physical crushing, complying with the environmental construction standards in the majority of countries worldwide, among them Europe, America, Southeast Asia, Africa, and the Middle East.
● Compression Crushing Principle (for hard rocks): Mobile rock crushers with jaw or cone hosts use the high-strength wear-resistant plates to produce continuous squeezing force. When the external force exceeds the internal stress limit of the hard rocks such as granite, basalt, iron ore, and river pebbles, they break and crumble along natural fractures. This process is characterized by the stability of the crushing pressure, low wear consumption, and few finished products' impurities and is suitable for the big scale crushing production of high-hardness ores.
● Impact and Hammer Crushing Principle (for medium-soft materials): Mobile rock crushers with impact or hammer hosts use high-speed rotating rotors and hammers to subject materials such as limestone, bluestone, shale, and construction waste to the high frequency impact, strikes, and grinding. They rapidly crush the material and disperse sticky impurities, providing high crushing efficiency and fast discharge speed; they are suitable for general purpose infrastructure aggregate and solid waste recycling.
● Rock-on-Rock Impact Shaping Principle (for high-quality sand and aggregate): Mobile impact crushing equipment uses the high-speed vortex impact principle when stones are impacted and ground by each other. Not only do they finely crush the stone but also grind the sharp edges, optimize aggregate gradation, and produce high grade manufactured sand. They correspond to the aggregate standards of the high-end infrastructure, bridges, and highways.
Core Structural Components of Mobile Rock Crushers
Mobile rock crusher which is able to work under complicated conditions globally and continuously and stably uses a standardized modular integrated design. All the systems have been optimized according to practical testing in the cross-border conditions, balancing the stability, mobility, and versatility. Six core systems work in harmony to form the closed-loop crushing production line which is also the core guarantee of the equipment adaptability to the construction in different global regions, low failure rate, and high productivity.
Multi-functional Mobile Walking Chassis:
As the core carrier of the mobile rock crusher, it is divided into two mainstream types – the tire type and the crawler type which are specifically adapted to the different global terrains and landforms. The tire type chassis is characterized by its light weight, quick relocation speed, and the lack of restriction in road transport; it is suitable for the urban road construction, plain worksites, and short distance relocation projects with low transport costs. The crawler type chassis uses the engineering grade track design which features large contact area and strong anti-slip climbing ability; it easily deals with the steep mountain slopes, muddy swamps, rugged mines, and the off-road pathless sites, perfectly adapting to the complicated field construction areas in Africa, Southeast Asia, South America, and other regions with full terrain adaptability.
Intelligent Quantitative Variable-Frequency Feeding System
Provided with a variable-frequency speed controlled feeder, it provides the intelligent volume control and uniform feeding. It features a pre-screening function which filters out the soil, fine powder, and impurities from the raw stone in advance to prevent large materials and sticky impurities from blocking the crushing chamber. The system is able to automatically adjust the feeding speed according to material hardness and real-time production capacity, providing 24 hour continuous and balanced operation and significantly reducing the probability of blockage faults and adapting to the complicated conditions of wet materials, earthy materials, or mixed wet and dry materials.
Core Crushing Host Module
This module is the core operating part of the mobile rock crusher, and the modular demand-oriented choice is very important for adapting to different crushing demands across the globe. There are five major types of modules: jaw crusher hosts, impact crusher hosts, cone crusher hosts, hammer crusher hosts and impact sand making hosts. They can be freely combined depending on the hardness of the material being crushed, output particle size and capacity. They can fully meet all kinds of process requirement from coarse crushing, medium and fine crushing to fine sand making. One machine can fulfill various functions, and is applicable to the crushing of various ores and construction garbage in the world.
Multi-layer Precise Screening System
With the help of the high-frequency vibrating screen, it allows multi-layer classification screening. It can simultaneously screen out finished stone products with different specifications with high efficiency and anti-blockage property. The screening parameters of the system can be adjusted in time depending on the engineering aggregate standards of different countries and the specific requirements of the client for particle size, and separate the finished products from the unqualified oversized materials, providing precise screening guarantee for the secondary crushing in closed loop mode.
Complete Automatic Material Transporting and Return System
It comes with multiple wear-resistant conveyor belts, which is divided into two major modules: discharge transport and return transport. The qualified finished products are piled up by means of the main discharge conveyor belt, and substandard large stones are automatically returned to the crushing chamber via the return conveyor belt for secondary crushing, completing the closed operation mode which can completely eliminate material waste. The utilization rate of raw material approaches 100%, greatly increasing the investment benefit of the project.
Smart Electronic Control and Power System
It adopts the internationally standardized electronic control system, which has one button start-up, intelligent overload protection, automatic alarm for failures and remote operation and maintenance. The operation is very easy and safe, and is compatible with different national voltage standards and construction safety standards. The power system is energy-saving and quiet with stable power supply and low energy consumption under long-term continuous operation, and can meet the needs of large-scale volume production in the world.
Complete Automated Operation Flow of Mobile Rock Crushers
Relying on the coordination of the modular system, the mobile rock crusher has established a standardized, automated and closed crushing process. Without human handling and coordination of multiple equipment, only one unit is able to independently complete the whole processing procedure from raw stones to finished sand and aggregate. The procedure is very simple and efficient with extremely low labor cost, and therefore has become the optimal solution for small and medium scale crushing projects all around the world.
● On-site Feeding and Preliminary Processing: Raw stones, waste rocks or construction garbage are fed into the feeding hopper of the equipment by means of excavators or loaders. The pre-screening system automatically screens out impurities such as soil, weeds and fine dust, ensuring the purity of material being introduced into the crushing chamber. In this way, the wear rate of equipment is greatly reduced from the source, and improves the quality of finished aggregate.
●Core Graded Crushing Process: The pre-processed material enters the crushing chamber uniformly. Depending on the type of the material, the corresponding crushing mechanism is initiated: compression crushing for hard rock, impact crushing for soft rock, and shaping crushing for high-grade rock. Through one crushing, raw large stones are turned into crushed stones, aggregates and manufactured sand with various particle sizes, with controllable crushing precision and stable quality of the finished products.
● Smart Graded Screening and Sorting: The crushed materials enter the vibrating screening system through conveyor belts, which will be automatically sorted out according to the set particle sizes. The qualified finished stones will be directly conveyed and discharged, and substandard oversized materials will be automatically diverted to the return system.
● Closed-loop Material Returning and Secondary Crushing: The diverted substandard large materials are circulated to the crushing host for re-crushing, repeating the process until all the materials meet the required standard. In this way, the problems caused by traditional crushing equipment such as uneven finished products and excessive waste can be totally solved. This not only maximizes the utilization rate of raw materials, but also increases the production capacity and economic benefits of the project.
● Centralized Finished Product Piling and Discharge: The qualified sand and aggregate with various specifications are piled up respectively through independent conveyor belts. They can either be directly applied to roadbed backfilling, concrete mixing and building material processing, or sold externally, achieving localized crushing, immediate production and instant profits.

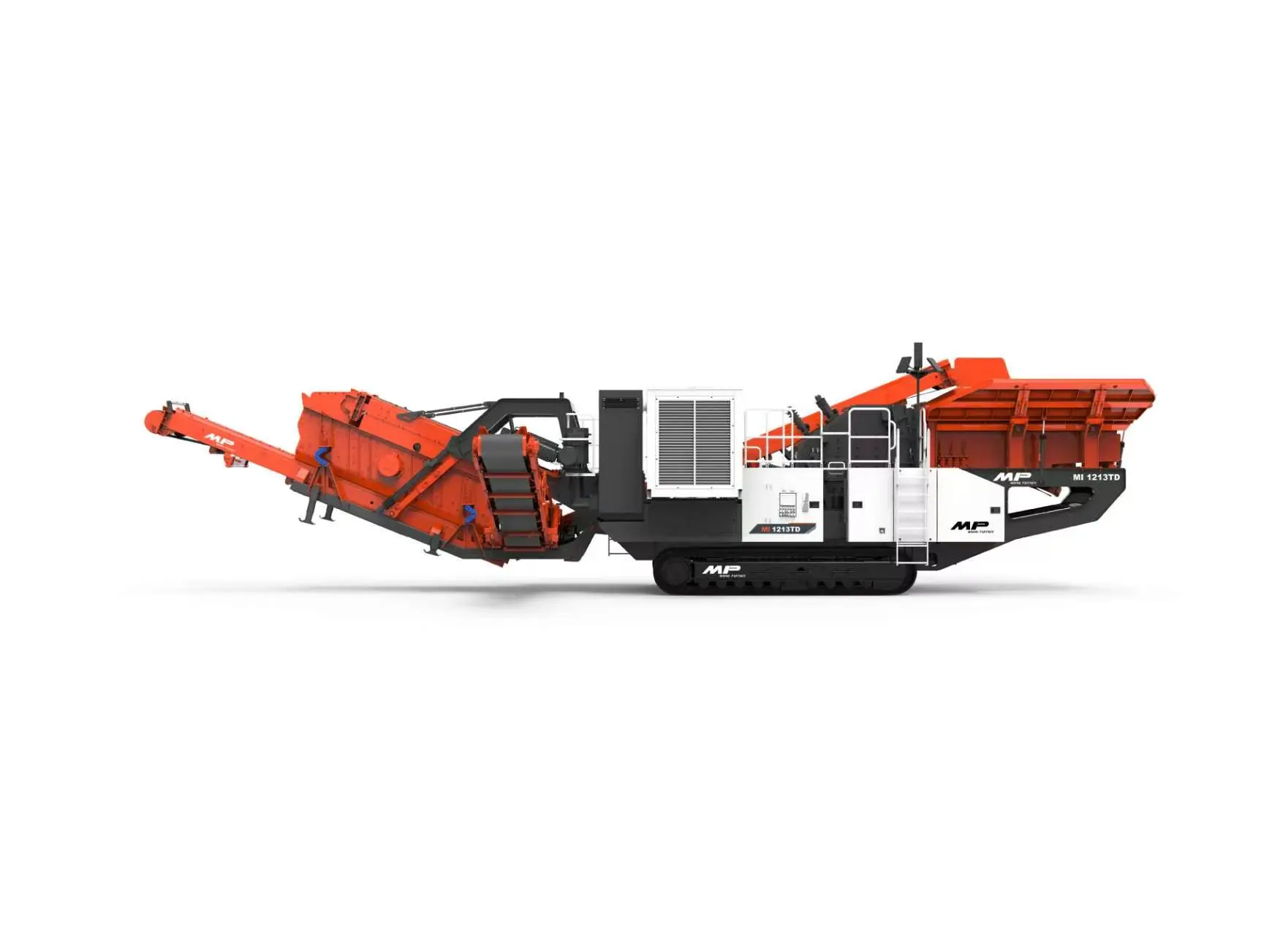

MP Mobile Rock Crusher Model Classification and Global Application Scenarios
Ore properties, construction environments and engineering standards of different regions differ greatly. Targeted selection of the mobile rock crusher is the key factor for ensuring production capacity, reducing operating cost and adapting to local construction standards. Based on the practical experience of implementation in various countries, the five major types of models are applicable to the following scenarios respectively:
Mobile Jaw Rock Crusher: It is designed for large material intake and powerful coarse crushing, especially for ultra-high-hardness rocks such as granite, basalt, iron ore and river pebble. The equipment features strong loading capacity, excellent wear resistance and low failure rate. It is applicable for the large-scale global mining and raw stone coarse processing projects, being the basic model of hard rock crushing.
Mobile Impact Rock Crusher: It mainly focuses on medium and fine crushing process, the finished products with round and cubic shape without flaky and elongated particles, and good appearance. It is applicable for medium-soft materials like limestone, bluestone, dolomite and construction garbage, and is widely applied in global urban infrastructure, road renovation and construction garbage recycling projects, having very high cost-effectiveness.
Mobile Cone Rock Crusher: It is dedicated to the high-precision medium and fine crushing of hard rock, featuring uniform crushing pressure, consistent discharge particle size and reasonable grading. It is applicable for the high-end aggregate production and refined processing projects in large mines, and meets the material requirements of high-standard infrastructure projects in Europe, America, Middle East and other regions.
Mobile Hammer Rock Crusher: The crushing and screening functions are combined in one device, having adjustable discharge particle size, simple structure and convenient operation & maintenance. It is applicable for the light weight materials like coal gangue, shale and ordinary mountain rock, and fits the scattered crushing projects all over the world as well as small scale aggregate plant production projects.
Mobile Impact Sand Making Crusher: Dedicated to the manufacturing of quality sand particles based on the principle of grinding stone edges through rock-on-rock crushing technique. Mobile Impact Sand Making Crushers are used to produce specialized sand and aggregate particles for high-quality building materials, bridges and highways.
Key Strengths of Mobile Rock Crushers for International Construction
Unlike the traditional stationary crushing production line, the core strengths of the mobile rock crusher equipment such as adaptability, lightweight structure, integration, and universal application makes it ideally suited to international construction scenarios across many global regions. It helps address many concerns associated with international projects like lack of space at construction site, strict schedule, frequent relocating, costly labor, and high costs of station construction.
1. Zero Installation Rapid Commissioning, Cutting Down Overseas Project Timeframes: The machine is already assembled in the factory, thus, there is no need to construct the station site, build factories, or assemble the equipment on site. After arrival, the equipment can begin work immediately, helping to cut down the time needed for overseas projects to get commissioned and make profits.
2. All Terrain Suitability, Versatility for International Application: Available in tire type and crawler type chassis designs, it is able to adapt to all kinds of complex terrains worldwide including plains, mountains, hills, mudland, and desert. It is not restricted by construction site and geographical conditions, making it flexible and convenient to relocate cross countries.
3. Significant Costs Savings through On-Site Crushing, Huge Economical Benefits: No need for stone transportation over long distance. Stone crushing and processing will be done on site. This greatly saves stone transportation costs, stockpiling costs, and management costs, particularly ideal for remote area and field mining projects, where the cost-saving strength is excellent.
4. Multipurpose Single Machine, Adaptable to Multipurpose Construction: The crushing unit can be easily converted and adapted to crush hard rock mine, produce soft rock aggregate, recycle construction solid waste and process road aggregate. One piece of equipment meets many kinds of engineering needs, helping to save equipment purchasing costs for overseas clients.
5. Environment & Safety Compliance: Sealed crushing room design equipped with noise reduction and dust removal functions and purely physical crushing process makes this equipment pollution-free, low-noise, and low dust, which conforms to environment protection regulations and construction safety regulations in most countries worldwide, allowing for the smooth acceptance of overseas projects.
Key Factors for Selection of Mobile Crushers Project Worldwide
Based on MP's 15 years of experience of exporting crushing equipment worldwide and implementation of crushing projects, customers buying mobile rock crushers in different regions have to find out the best match between the equipment and the local working conditions to avoid problems like inadequate crushing capacity, frequent malfunction, and project rejection. Crawler type crushers are preferentially selected for complex terrain and continuous operation in Southeast Asia and African field projects. Tire type crushers are the choice for urban municipal and road projects as it is convenient for relocation and won't damage road surfaces. High-hardness mine requires jaw crusher plus cone crusher combination. Soft rock and solid waste projects require impact crushers or hammer crushers. And for high quality sand making, impact sand making machines are recommended. Choosing the model according to specific conditions brings maximum benefit from the equipment.
Conclusion
In short, the basic principle of mobile rock crushers is using a vehicle-mounted modular system along with differentiated physical crushing process to achieve automated, mobile, on-site crushing and processing of rock, stone and construction waste. With the core strengths of no need for station construction, flexible relocating, rapid commissioning, all terrain suitability, cost savings and efficiency improvement, mobile rock crushers break through the site and condition constraints of traditional fixed crushing equipment completely. They become the mainstream crushing equipment for the three key global sectors: mining, infrastructure and solid waste recycling. MP is a publicly listed company with 15 years' experience in integration of research, development, manufacture, sales and services of rock crushers, feeders, screens and other equipment. It provides more than 200 models of various crushers including jaw crusher (PEW Series, PEV Series), Vertical impact crusher, roller crusher, hydraulic cone crusher, hydraulic multi-cylinder cone crusher, impact crusher, and more. We can provide exclusive crushing solutions tailored to different countries' terrain environment, ore material, environment protection standard and capacity requirement for global customers. We can provide cross-border shipment and global on-site installation, commissioning and after-sales service. If you have any questions, please feel free to contact us.
